WEIPU METAL WATERPROOF WY SERIES ZINC ALLOY MULTI SIZE BAYONET COLLECTION

Waterproof
Anti-vibration
Multi-size
Hybrid connection available

The WY series is one of WEIPU’s signature metal connector families. Its zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series ranges from IP55 to IP67, and can be used in many outdoor applications such as EV batteries, automation, robots, security, monitoring, sensors, etc.

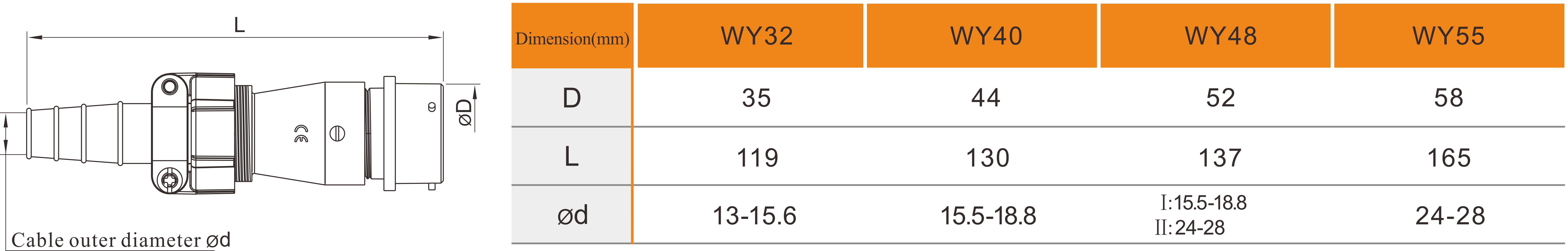

1) panel cutout dimension 16-55mm

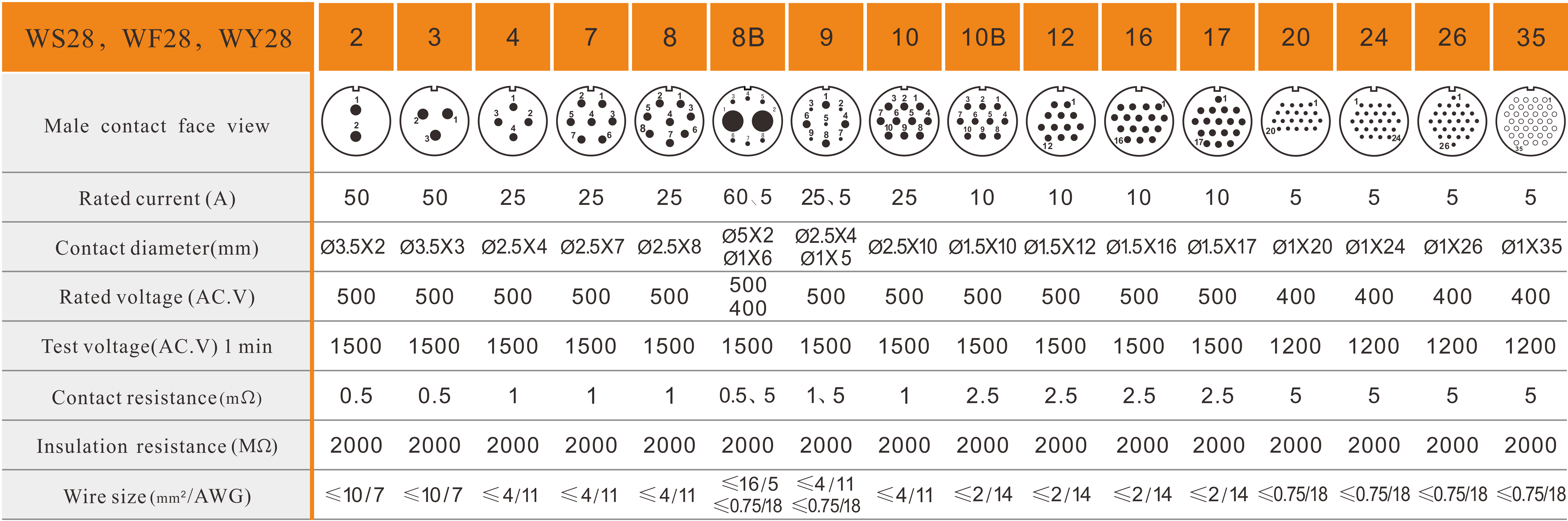

2) 1-61 contacts
3) rated current: 5-150A
4) gold plating pin
5) solder/screw/crimp terminal options
6) assembly available
7) IP55-IP67
8) anti-vibration

Applications: This connector is designed with strong material for a robust environment. The various collections in the family made it widely used in all sorts of machines and equipment. It gets in both power and signal supply and a hybrid connection is available to choose from size to size. With its IP rating and bayonet locking structure, it is a great component to work under waterproof and vibrating conditions.
