WEIPU IP67-Push-lock WK16 Series Easy & Reliable Locking Mechanism

Water tight-IP67
Solder termination
Shielding Option
Easy Installation

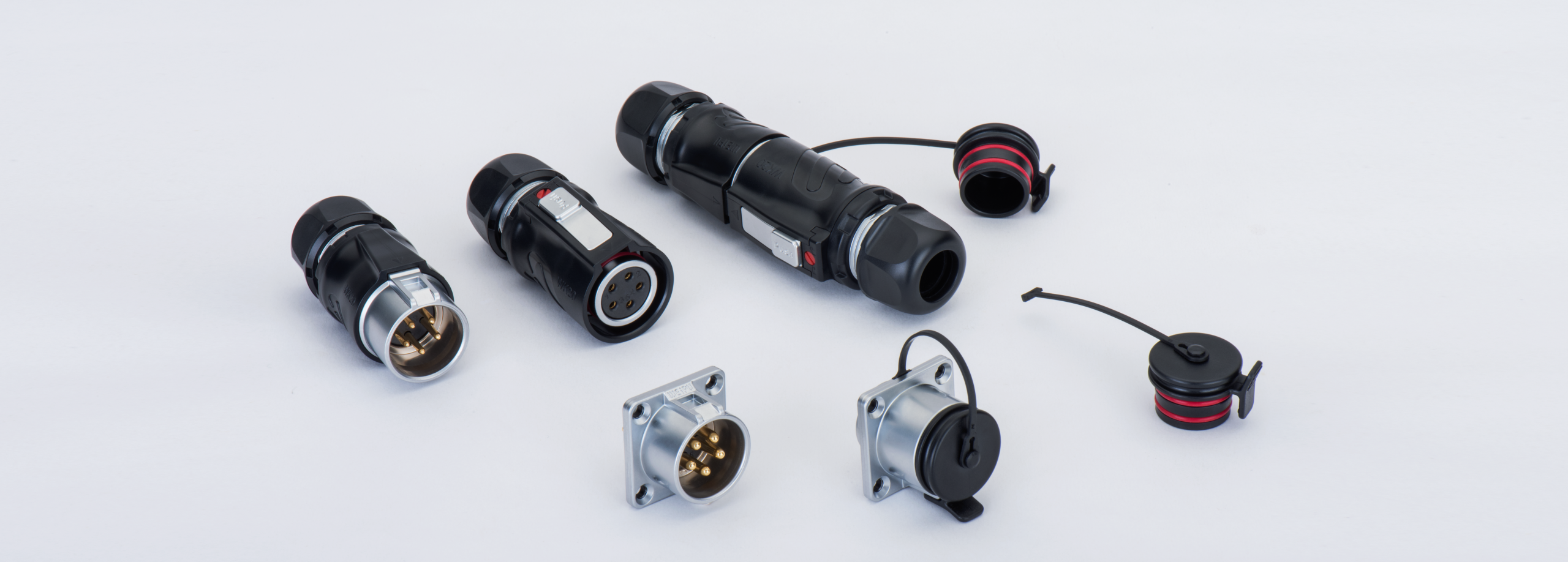

The WK Series offers a robust and versatile push-lock locking mechanism, ideal for industries that demand reliable and secure connections in challenging environments. These connectors are available in two sizes, WK16 and WK20. They deliver reliable and easy-to-use locking, perfect for battery systems, solar power installations, lighting, aquatic devices, and more.

WK16 Features:

Push-Lock Mechanism: Ensures quick and secure connections, enhancing user convenience.
IP67 protection & High Durability: Made from PPE & zinc alloy, with IP67 protection suitable for rugged applications.
PIN-separated protection: The inner core separation design can avoid accidental touching of the inner core during installation. This design makes the entire connection more stable and will not cause unnecessary disconnection from the fluctuation of external time.

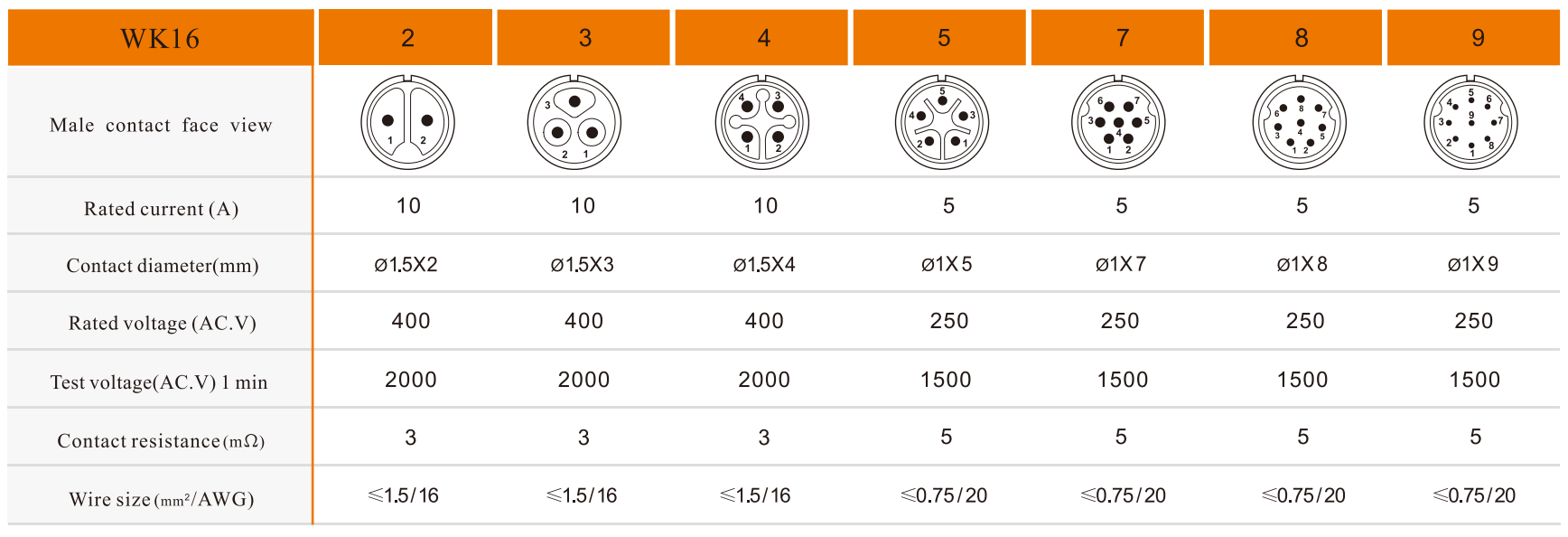

Versatile Pin Options: Available in 2-9 pin configurations to meet diverse electrical needs.
Wide Temperature Range: Operates reliably from -40°C to +105°C, suited for harsh environments.
