WEIPU IP68-LARGE SP29 NYLON SERIES WITH THREADED COUPLING

  • Fast-lock

    Large size

  • ic_01-1

    Water tight-IP68

  • International standard_European configuration _Various configuration options

    Solder, screw, crimp termination

The WEIPU SP29 series is a large-size, high-performance IP68 waterproof connector specially designed for reliable operation in demanding applications requiring superior water resistance. As part of the WEIPU SP Series, the SP29 connector excels in harsh and rugged environments, offering power and signal arrangements to ensure seamless connectivity in various industrial and outdoor applications.



Key Features:

  • Large size: Built for high-power applications and tough environments.
  • Contact Range: Available with 2-35 contacts, providing flexibility for diverse needs.
  • Rated Current: Supports 5-60A, ensuring reliable power delivery in heavy-duty applications.
  • Gold Plated Pins: Delivers optimal conductivity and long-lasting durability.
  • IP68 Rating: Fully protected against dust and water ingress when mated, ensuring dependable performance in extreme weather conditions.
  • Threaded Coupling: Guarantees a secure and stable connection, even under stress.
  • Termination options: Solder, screw, crimp
  • Assembly Available: Custom assembly options tailored to your requirements.



Applications:

This connector is engineered for industries that demand rugged, waterproof connections, such as:

  • Outdoor testing and measurement equipment
  • Telecommunications
  • Motors and outdoor lighting systems
  • Industrial and marine applications



Download SP29 Catalogue

24. SP29 Series (Threaded)(waterproof)
  • 24. SP29
    SP29 Mating Diagram
  • SP11_SP13_SP17_SP21_SP25_SP29產品

Different
connector types

Available in both male and female
Have options for plug, inline cable connector, panel socket

SP series Case- LED lighting-related projects

WEIPU SP series are widely considered by LED lighting-related projects. This series are available for multi-sizes, trying to meet all different requirements.

READ MORE

Having questions for SP29?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

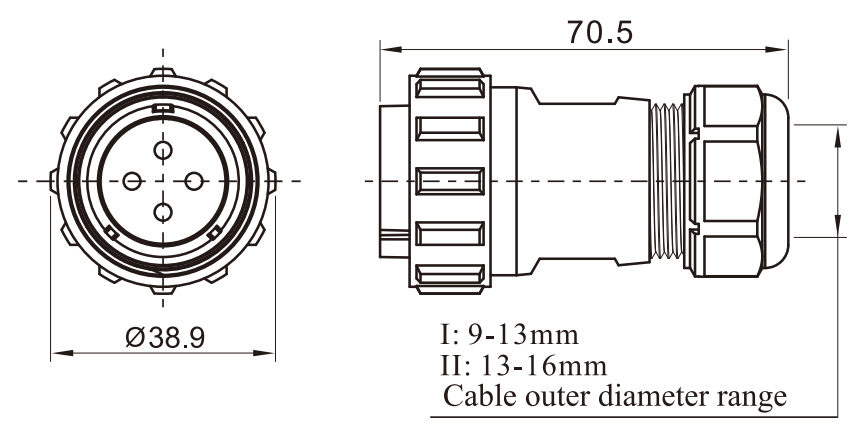

  • SP2910 2D

    SP2910 2D

  • SP2911 2D

    SP2911 2D

  • SP2912 2D

    SP2912 2D

  • SP2913 2D

    SP2913 2D

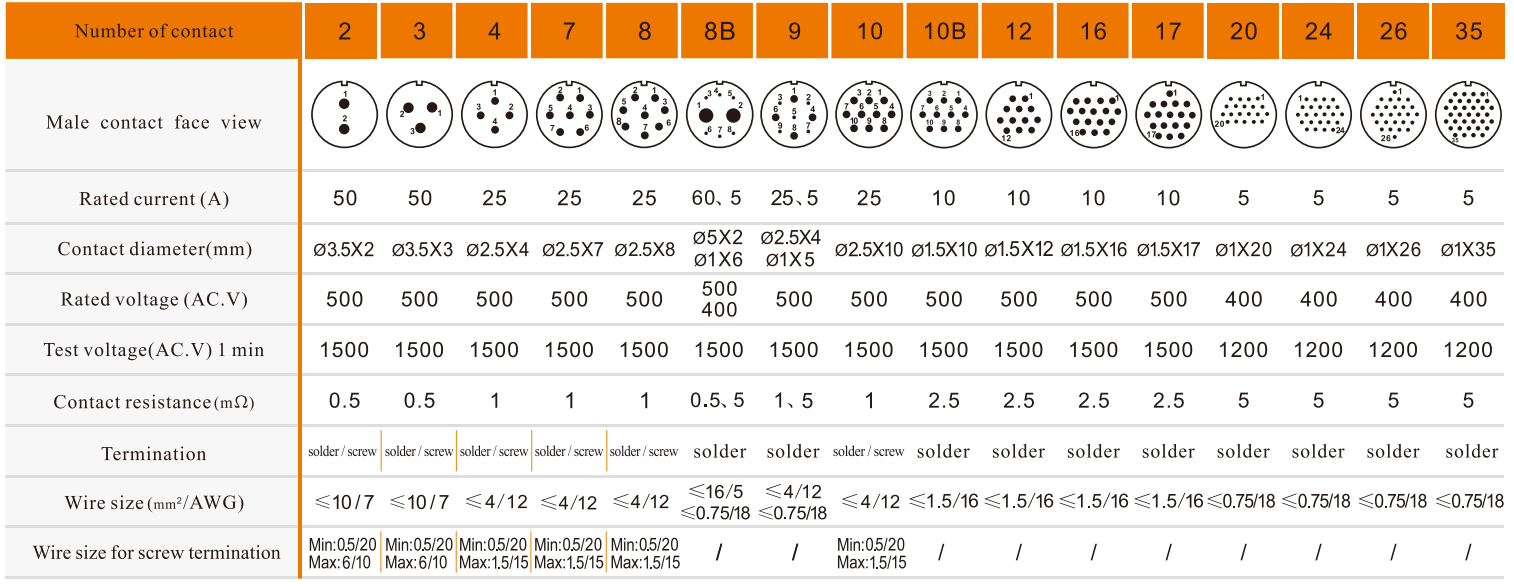

  • Solder Spec

    • SP29 solder
  • Crimp Spec

    • SP29 crimp
    • 5A crimp contact (1)
    • 10A 16-28
    • 25A 16-28
    • 50A 28

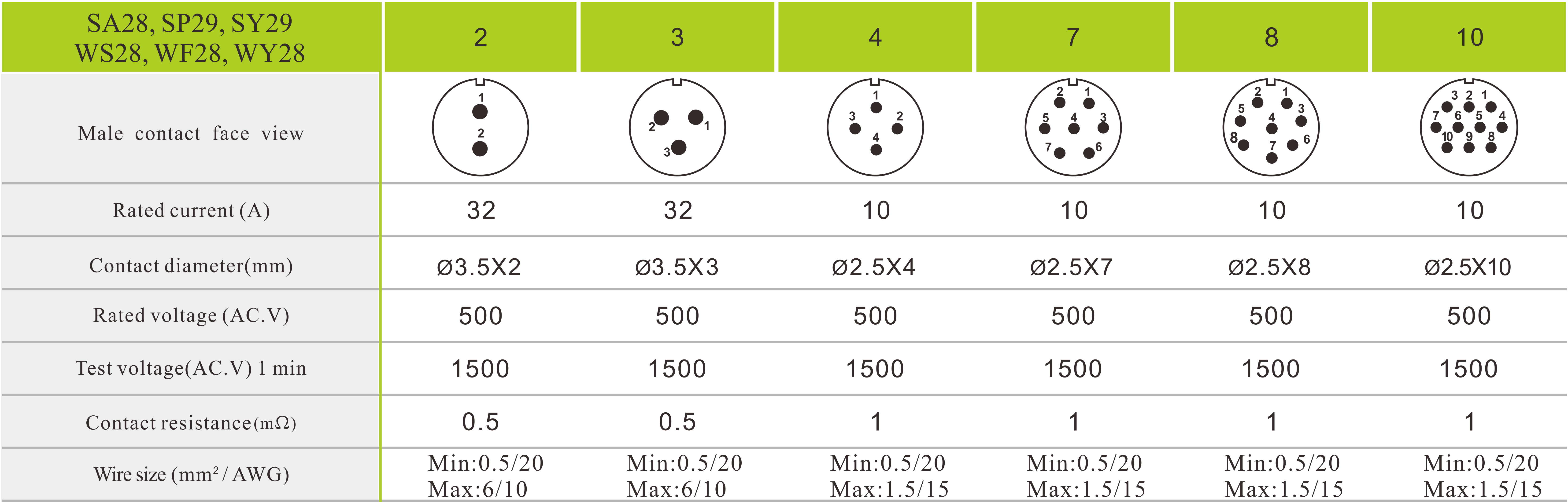

  • Screw Spec

    • P21-04
