WEIPU IP68-LARGE SP25 NYLON SERIES WITH THREADED COUPLING

  • Fast-lock

    Large size

  • ic_01-1

    Water tight-IP68

  • International standard_European configuration _Various configuration options

    Solder, screw, crimp termination

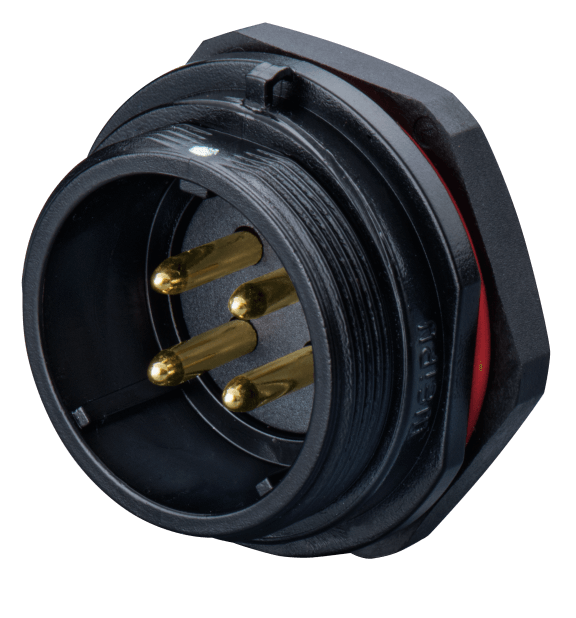

The WEIPU SP25 Series is a large-sized IP68 waterproof connector, specially designed for applications that require high water resistance and reliable performance in harsh environments. Whether used in power or signal arrangements, this series offers a durable and secure connection for a wide range of industrial applications.



Key Features:

  • Contact Range: Available with 2-19 contacts, offering flexibility for various power and signal needs.
  • Rated Current: Supports 5-30A, suitable for medium power applications that require stable and safe power delivery.
  • Gold Plated Pins: Ensures superior conductivity, resistance to corrosion, and long-term durability for reliable connections.
  • Threaded Coupling: Provides secure and stable connections in tough environments.
  • Termination Options: Available with Solder, Screw, and Crimp terminations, offering flexibility in installation and connection types.
  • Assembly Available: Custom assembly options to meet specific connection requirements.



Applications:

With its rugged construction, the SP25 Series ensures reliable and secure connections in challenging environments, such as outdoor testing or measuring equipment, industrial automation, communications field, etc.



Download SP25 Catalogue

23. SP25 Series (Thread) (waterproof)
  • 23. SP25
    SP25 Mating Diagram
  • SP11_SP13_SP17_SP21_SP25_SP29產品

Different
connector types

Available in both male and female
Have options for plug, inline cable connector, panel socket

SP series Case- LED lighting-related projects

WEIPU SP series are widely considered by LED lighting-related projects. This series are available for multi-sizes, trying to meet all different requirements.

READ MORE

Having questions for SP25?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

  • SP2510 2D

    SP2510 2D

  • SP2511 2D

    SP2511 2D

  • SP2512 2D

    SP2512 2D

  • SP2513 2D

    SP2513 2D

  • SP2515 2D

    SP2515 2D

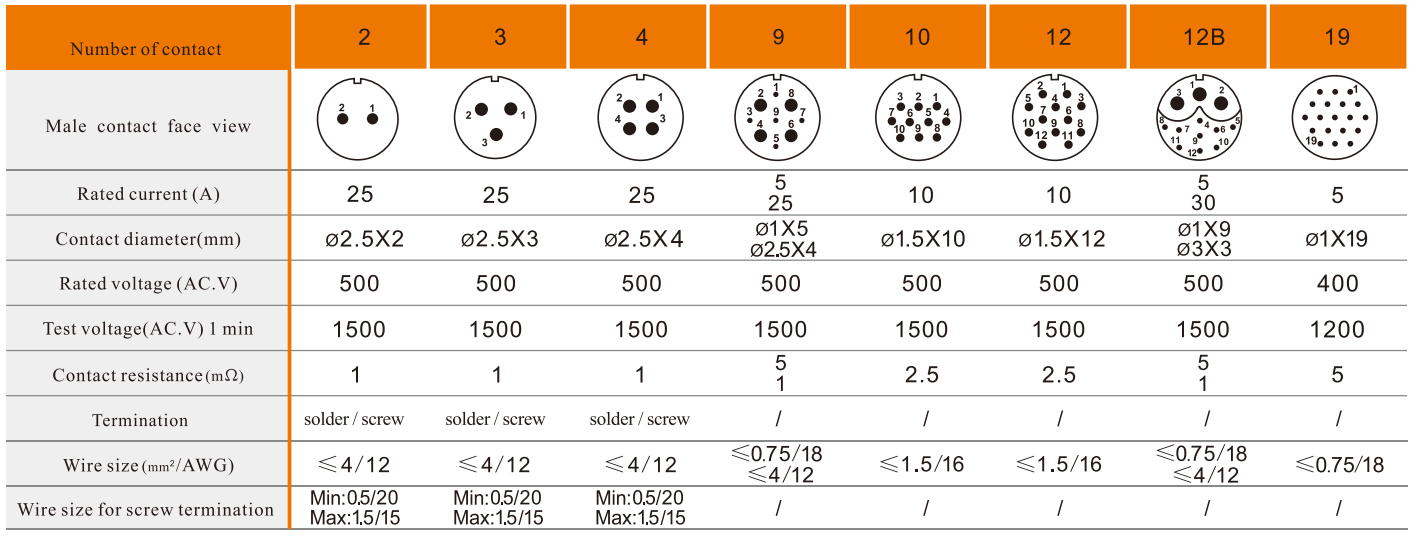

  • Solder Spec

    • SP25 Solder 1
  • Crimp Spec

    • SP25 Crimp 2
    • 5A crimp contact (1)
    • 10A 16-28
    • 25A 16-28
  • Screw Spec

    • P21-03
