WEIPU IP68-SP17 Medium NYLON SERIES WITH THREADED COUPLING

  • Fast-lock

    Medium size

  • ic_01-4

    Solder, screw, crimp termination

  • ic_01-1

    IP68 Protection

  • International standard_European configuration _Various configuration options

    UL certificated

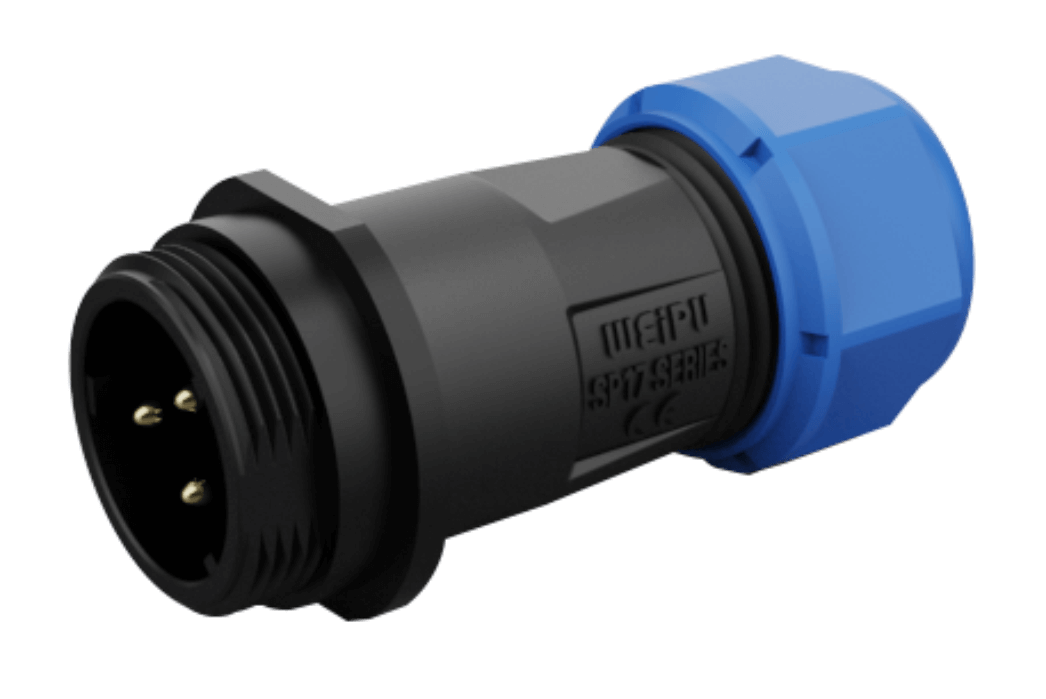

The WEIPU SP17 Series is a medium-sized IP68 waterproof connector, designed to deliver high performance in demanding environments that require reliable power or signal connections. It is available in Solder, Screw, Horizontal mount screw, and Crimp termination for different contact of arrangement.



Key Features:

  • Medium Size: Offers the right balance between compactness and rugged performance, perfect for demanding environments.
  • Contact Range: Available with 1-10 contacts, providing flexibility for various connection configurations.
  • Rated Current: Supports 5-50A, suitable for both low and medium-power applications.
  • Gold Plated Pins: Ensures optimal conductivity, corrosion resistance, and long-term durability.
  • IP68 Rating: Fully protected against dust and water ingress when mated, ensuring reliable performance in harsh environments.
  • Assembly Available: Custom assembly options tailored to specific requirements.
  • Threaded Coupling: Provides a secure and stable connection, even under harsh conditions.
  • UL Certification: Assures product safety and reliability.



Applications:

With its rugged construction, the SP17 Series ensures reliable and secure connections in challenging environments, such as outdoor testing or measuring equipment, industrial automation, communications field, etc.



Download SP17 Catalogue

21. SP17 Series (Threaded)(waterproof)
  • 21. SP17

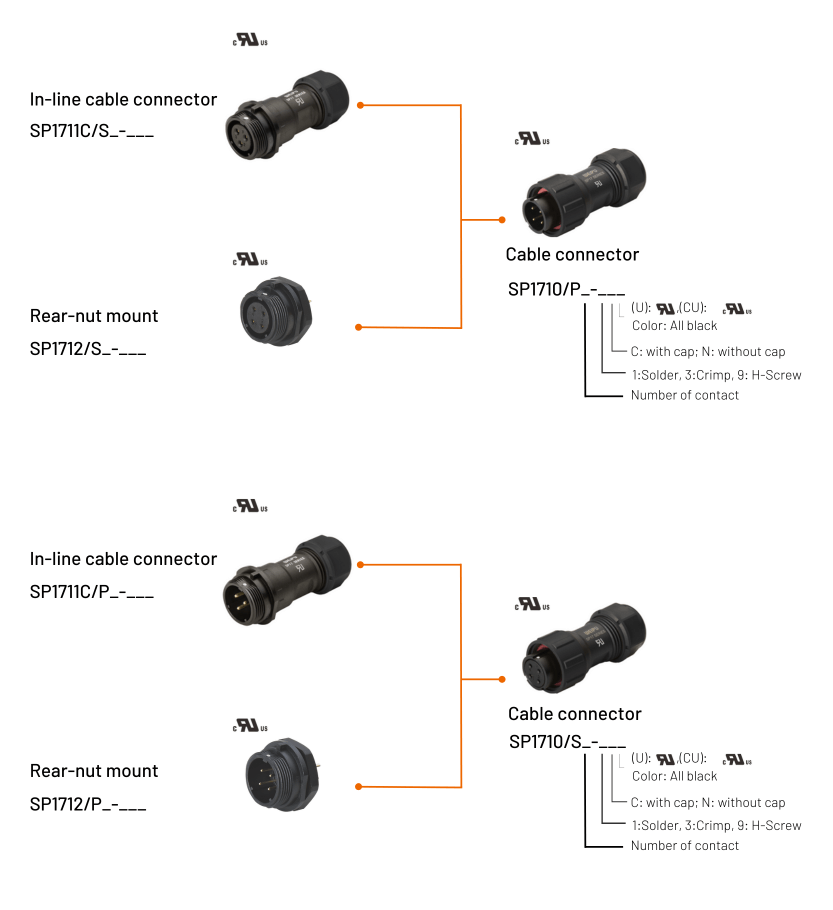

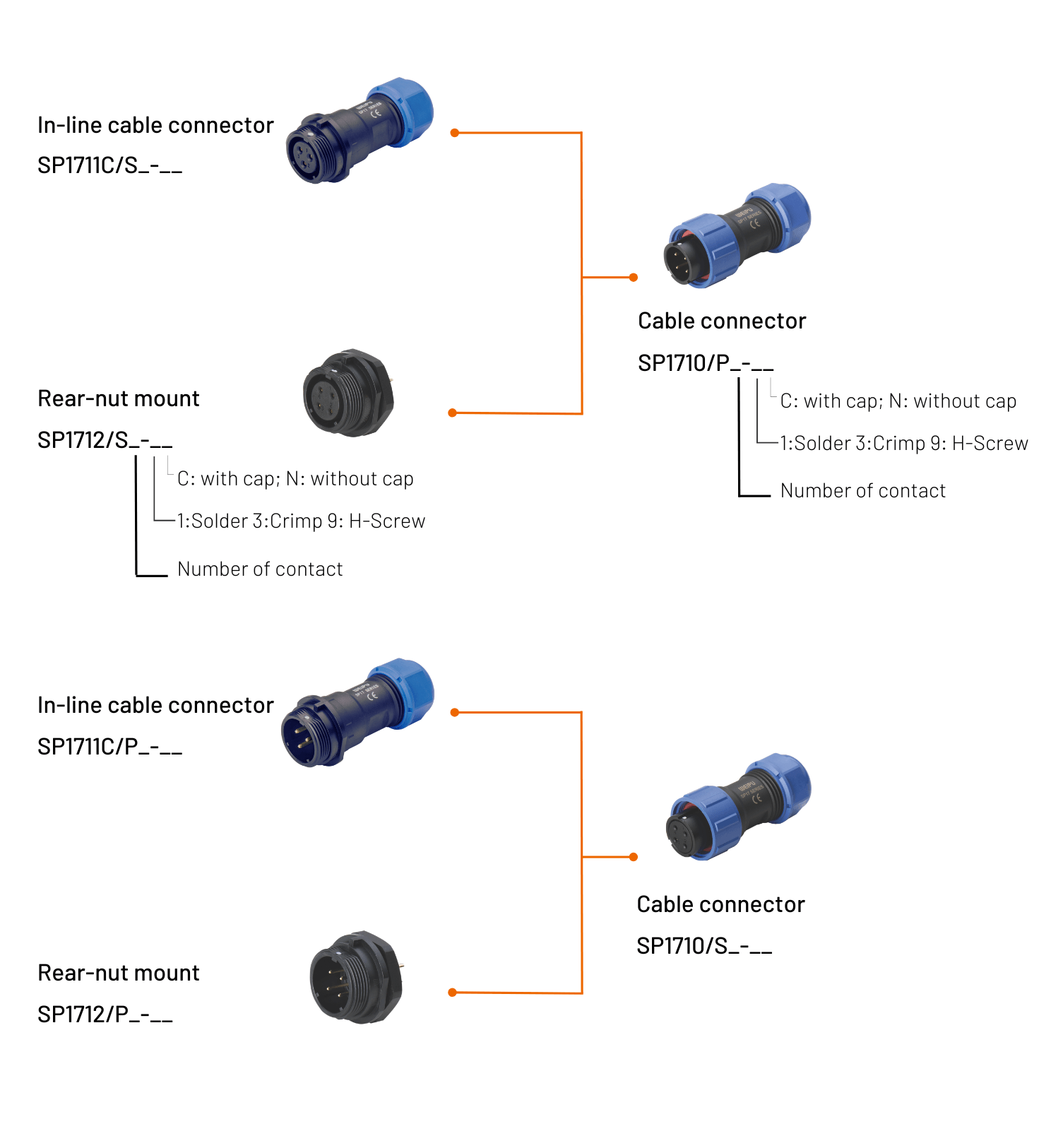

    SP17 Mating Diagram
  • SP11_SP13_SP17_SP21_SP25_SP29產品 (1)

Different
connector types

Available in both male and female
Have options for plug, inline cable connector, panel socket.

SP series Case- LED lighting-related projects

WEIPU SP series are widely considered by LED lighting-related projects. This series are available for multi-sizes, trying to meet all different requirements.

READ MORE

Having questions for SP17?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

  • SP1710 2D

    SP1710 2D

  • SP1711C 2D

    SP1711C 2D

  • SP1712 2D

    SP1712 2D

  • Solder Spec

    • SP17 solder
  • Crimp Spec

    • SP17 crimp
    • 5A crimp contact (1)
    • 10A 16-28
    • Crimp contact (5)
  • Horizontal Mount Screw Spec

    • SP17 Horizontal Screw
