WEIPU IP68-SMALL SP13 NYLON SERIES WITH THREADED COUPLING

Small size
Water tight-IP68
Dust proof
UL Certificated

The WEIPU SP13 Series is a mini-size IP68 waterproof connector designed specifically for applications that require space-saving solutions while maintaining high water resistance. It is available in panel mount, cable mount, and in-line cable mount options providing the choice of a cable-to-cable connection or cable-to-panel-mount connection with either end being a male or female connection.

Key Features:

Small Size: Compact design makes it perfect for applications with limited space, offering reliable connections without taking up unnecessary room.
Contact Range: Available with 2-9 contacts, providing flexibility to meet various connection needs.
Rated Current: Supports 3-13A, suitable for both low and medium-power applications.
Gold Plated Pins: Ensures superior conductivity, corrosion resistance, and durability.
IP68 Rating: Fully sealed against dust and water ingress when mated, ensuring reliable performance in challenging environments.
Assembly Available: Custom assembly options to meet specific requirements.
Threaded Coupling: Provides a secure and stable connection, even in demanding conditions.
UL Certification: Assures product safety and reliability.

Applications:

This connector is designed for a space-consuming environment. The small dimension and high IP rating shell made it widely used in many areas, such as outdoor testing or measuring equipment, lighting devices, industrial automation, communications field, etc.

Download SP13 Catalogue

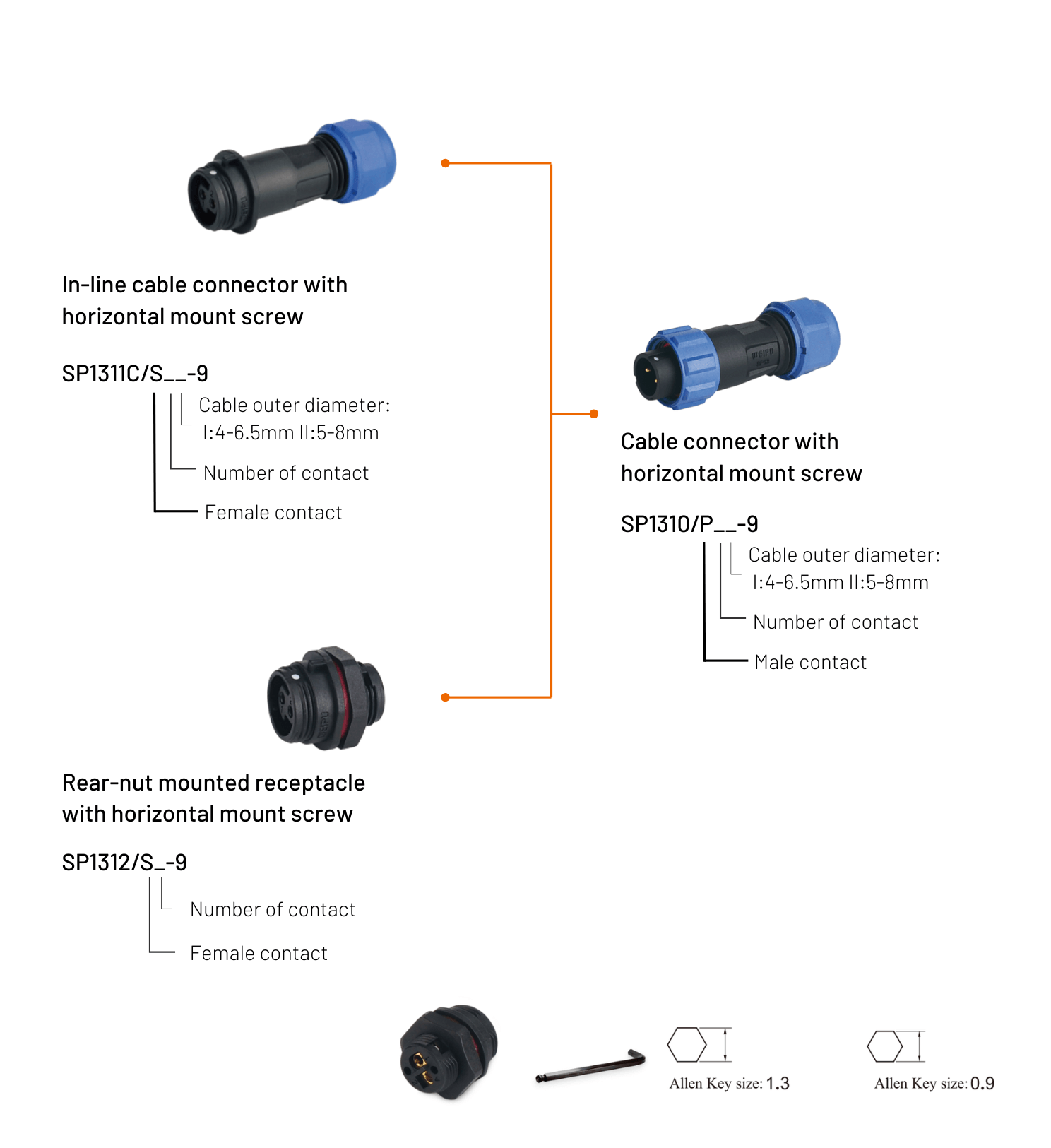

SP13 Mating Diagram

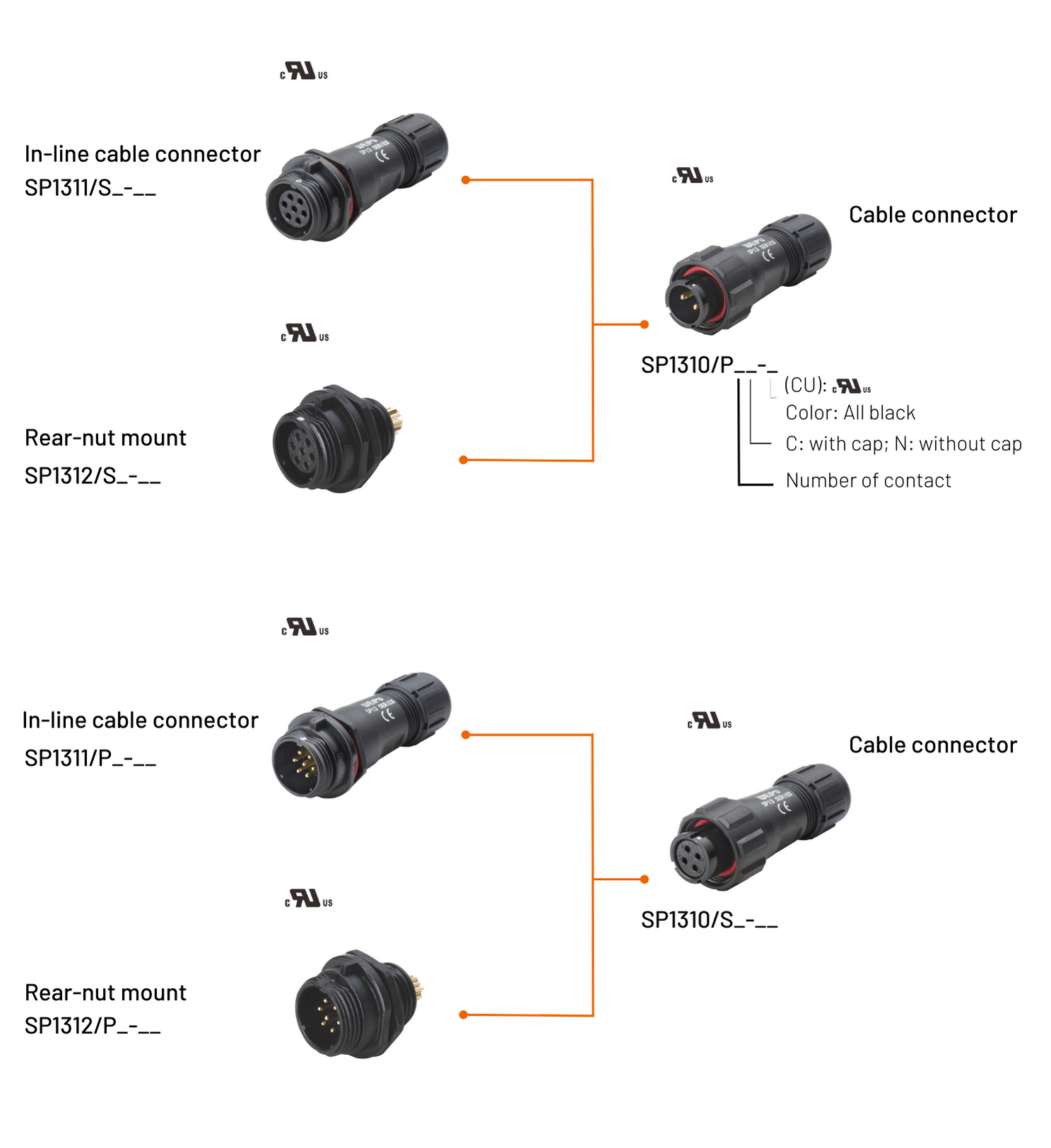

SP13-UL Mating Diagram

Different
connector types

Available in both male and female
Have options for plug, inline cable connector, panel socket

SP series Case-Boat Project

With the solid and high quality of SP series, IP68 SP series is well applied for boat project to make a stable connection even in marine environments.
