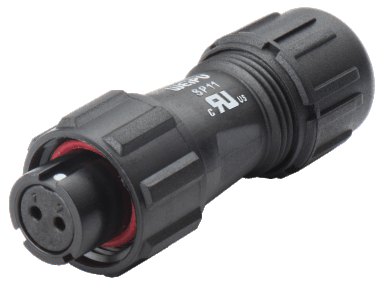

WEIPU IP68-MINI SP11 NYLON SERIES WITH THREADED COUPLING

Mini size
Ｗater tight-IP68
Dust proof
UL Certificated

The WEIPU SP11 Series is a mini-size IP68 waterproof connector designed for applications that require space-saving solutions without compromising on high water resistance. This connector is ideal for industries where a compact connector is essential, but performance and durability cannot be sacrificed. The SP11 Series features solder terminals for easy termination, and all contacts are gold-plated to ensure superior conductivity and long-lasting reliability.

Key Features:

Small Size: Perfect for applications with limited space, offering high performance in a compact form.
Contact Range: Available with 2-5 contacts, making it versatile for various connection needs.
Rated Current: Supports 3-5A, suitable for low-power applications.
IP68 Rating: Fully protected against dust and water ingress when mated, making it reliable in harsh conditions.
Threaded Coupling: Ensures a secure and stable connection, even in demanding environments.
Assembly Available: Custom assembly options to meet your specific needs.
UL Certification (4-5 Pin Models): Provides assurance of safety and reliability for specific configurations.

Applications:

This connector is designed for a space-consuming environment. The small dimension and high IP rating shell made it widely used in many areas, such as outdoor testing or measuring equipment, industrial automation, communications field, etc.

Download SP11 Catalogue

SP11 Mating Diagram

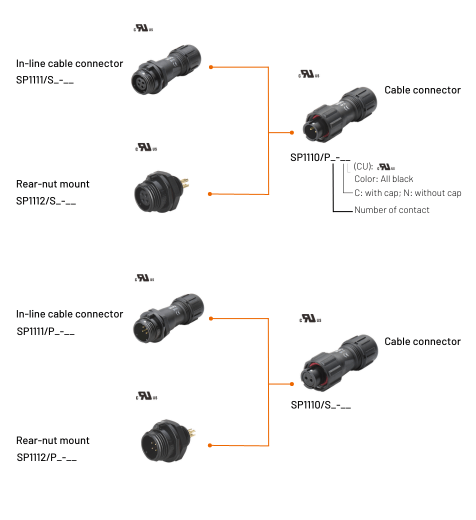

SP11-UL Mating Diagram

Different
connector types

Available in both male and female

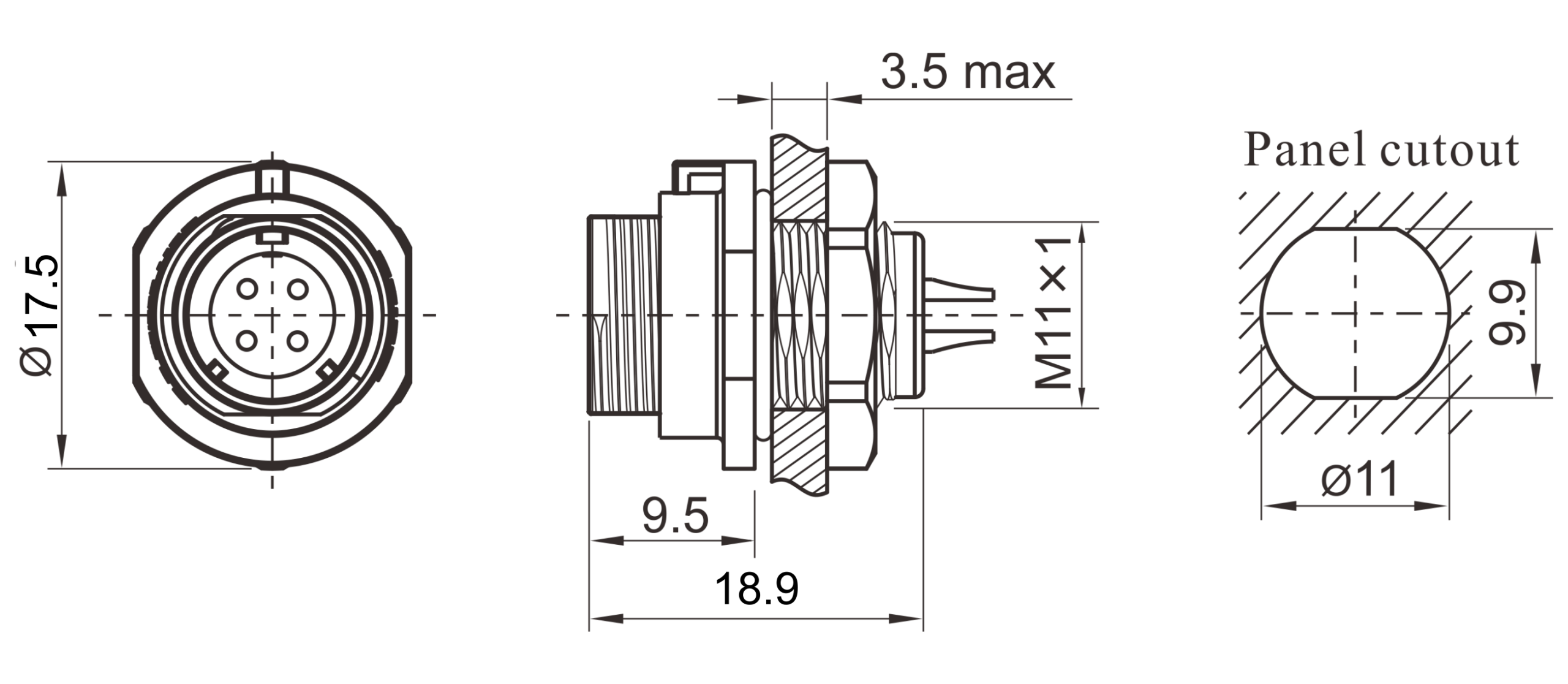

Have options for plug, inline cable connector, panel socket

SP series Case- Outdoor Antenna Projects

With its rugged design and high-level waterproof, WEIPU IP68 SP well fits for outdoor antenna projects to keep a stable connection even in harsh environments.
