WEIPU IP67 - Medium SF20 METAL SERIES WITH PUSH-PULL LOCKING

Water tight
Dust proof
Hybrid connection
Brass made

The WEIPU SF20 Series connector is expertly crafted from durable brass with chrome plating, designed specifically for applications demanding rapid connections and robust construction. As a medium-sized option within the WEIPU SF Series, the SF20 Series delivers reliability and versatility for power and signal applications.

Key Features:

Medium Size for Flexible Application
1 to 15 Contact Options
Rated Current: 5A to 100A
Gold-Plated Pins for Optimal Conductivity
IP67 Waterproof Rating (when mated)
Assembly Options Available

Applications:

Featuring a sophisticated and robust appearance, the SF20 Series connectors’ durable brass shells with chrome plating make them ideal for a wide range of applications, including medical devices, entertainment systems, beauty equipment, testing and measuring instruments, communications technology, and various other demanding fields.

Download SF20 Catalogue

SF20 Mating Diagram

Different
connector types

Available in both male and female.

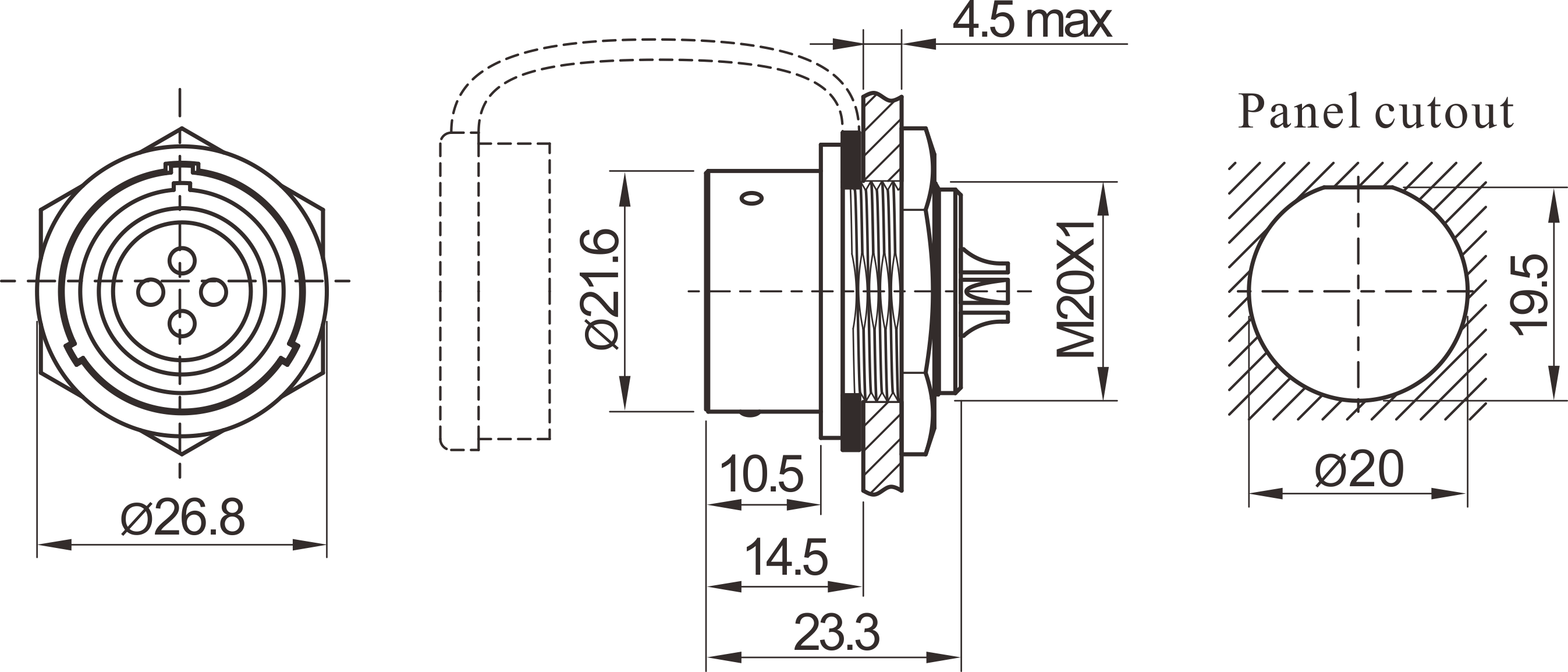

Have options for plug, inline cable connector, panel socket.

WEIPU SF series Case-Remote Controllers

WEIPU SF series has been a popular choice for controller projects. With IP67 protection, a push-pull fast connection function, SF can be applied for a variety of industries and keep stable connecting even in harsh environments.
