WEIPU IP67 - Medium SF16 METAL SERIES WITH PUSH-PULL LOCKING

  • ic_01-1

    Water tight

  • ic_01-2

    Dust proof

  • High mating cycles

    Quick connection

  • International standard_European configuration _Various configuration options

    Brass made

The WEIPU SF16 Series connector is constructed from high-grade brass with chrome plating, specifically engineered for applications demanding fast connections and durable materials. Positioned as a medium-sized option within the WEIPU SF Series, the SF16 Series is versatile for both power and signal applications.



Key Features:

  • Medium Size for Versatile Applications

  • 1 to 10 Contact Options

  • Rated Current: 5A to 50A

  • Gold-Plated Pins for Superior Conductivity

  • IP67 Waterproof Rating (when mated)

  • Assembly Solutions Available



Applications:

With its impressive appearance and sturdy brass shell with chrome plating, the SF16 Series connectors are widely used in diverse applications such as robotics, medical devices, testing and measuring equipment, communications technology, and various other precision-driven sectors. Ideal for both power supply and signal transmission, the SF16 connectors ensure reliable performance in demanding environments.



Download SF16 Catalogue

7. SF16 Series (Push-pull)(waterproof)
  • 7. SF16
    SF16 Mating Diagram
  • SF6_SF8_SF10_SF12_SF16_SF20產品

Different
connector types

Available in both male and female
Have options for plug, inline cable connector, panel socket.

WEIPU SF series Case-Remote Controllers

WEIPU SF has been a popular choice for controller projects. With IP67 protection, a push-pull fast connection function, SF can be applied for a variety of industries and keep stable connecting even in harsh environments.

READ MORE

Having questions for SF16?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

  • SF1610 2D

    SF1610 2D

  • SF1611 2D

    SF1611 2D

  • SF1612 2D

    SF1612 2D

  • SF1613 2D

    SF1613 2D

  • SF1615 2D

    SF1615 2D

  • Solder Spec

    • SF16 Solder
  • Crimp Spec

    • SF16 Crimp

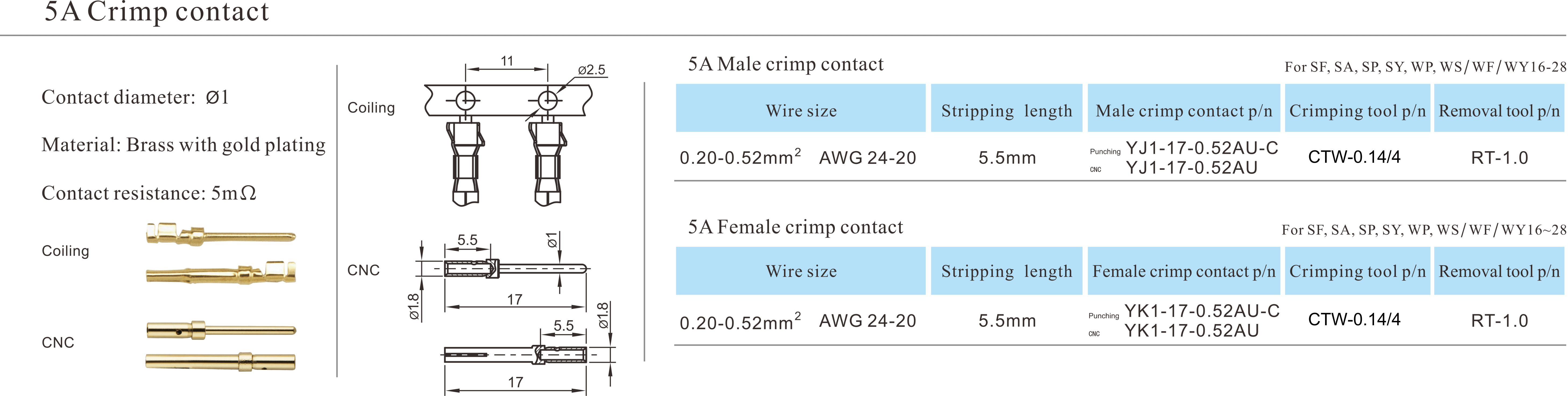

    • 5A crimp contact (1)
    • 10A 16-28
    • Crimp contact (5)
