WEIPU IP67 - Medium SA16 ALUMINIUM SERIES WITH PUSH-PULL LOCKING

  • High mating cycles

    Quick connection

  • ic_01-4

    Multi-color

  • ic_01-1

    Water tight

  • ic_01-2

    Dust proof

The WEIPU SA16 Series is a medium-sized waterproof connector that offers reliable performance in demanding applications. Designed with a push-pull coupling, the SA16 connector ensures fast, secure connections and is sealed to an IP67 rating, making it ideal for use in harsh environments. It is available with solder terminations or crimp terminals, allowing for easy and flexible installation.



Key Features:

  • Medium Size: Ideal for applications with moderate space requirements, offering both compactness and reliability.
  • Contact Range: Available with 1-10 contacts, providing flexibility for different connection needs.
  • Rated Current: Supports 5-50A, perfect for both low and medium power applications.
  • Gold Plated Pins: Ensures superior conductivity, corrosion resistance, and long-lasting performance.
  • IP67 Rating: Fully sealed against dust and water ingress when mated, ensuring dependable operation in harsh environments.
  • Assembly Available: Custom assembly options to meet your specific needs.
  • Color Options: Available in Black, Silver, Red, Blue, and Green, offering design flexibility.



Applications:

The WEIPU SA16 Series connector is highly popular due to its moderate size, high reliability, and versatile design. It is especially favored in applications such as LED lighting, solar applications, controllers, agricultural devices, test and measurement equipment, etc.



Download SA16 Catalogue

13. SA16 Series (Push-pull)(waterproof)
  • 13. SA16
    SA16 Mating Diagram
  • SA6_SA8_SA10_SA12_SA16_SA20_SA24_SA28產品

Different
connector types

Available in both male and female.
Have options for plug, inline cable connector, panel socket

SA series Case-Outdoor Bird Alert

As the devices are often placed in cold and rough weather, where WEIPU high waterproof metal series-SA realizes a stable connection and ensures its good operation.

READ MORE

Having questions for SA16 series?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

  • SA1610 2D

    SA1610 2D

  • SA1611 2D

    SA1611 2D

  • SA1612 2D

    SA1612 2D

  • SA1613 2D

    SA1613 2D

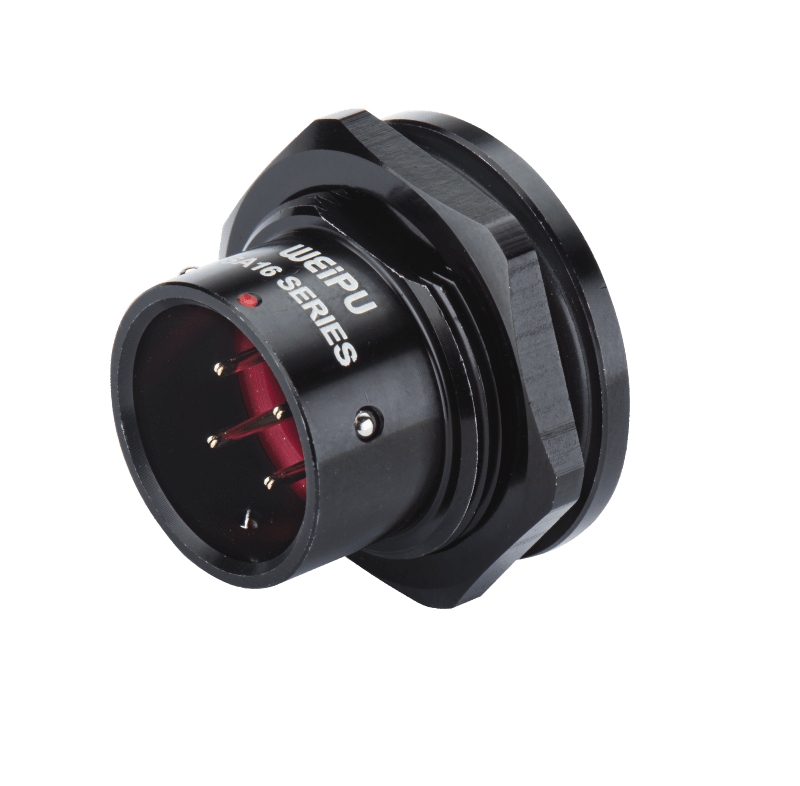

  • SA1615 2D

    SA1615 2D

  • Solder

    • SA16 Solder
  • Crimp

    • SA16 Crimp
    • 5A crimp contact (1)
    • 10A 16-28
    • Crimp contact (5)
