WEIPU IP67 - SMALL SF12 METAL SERIES WITH PUSH-PULL LOCKING

UL certified
Water tight
Dust proof
Quick connection

The WEIPU SF12 Series connector is crafted from premium brass with chrome plating, specially engineered for applications requiring rapid connection and comfortable handling. It is one of the most popular sizes in the WEIPU SF series, offering versatility and robust performance.

Key Features:

Compact Size for Convenient Handling
2 to 9 Contact Options
Rated Current: 3A to 13A
Gold-Plated Pins for Excellent Conductivity
IP67 Waterproof Rating (when mated)
UL Certified (for 4-7 pins)

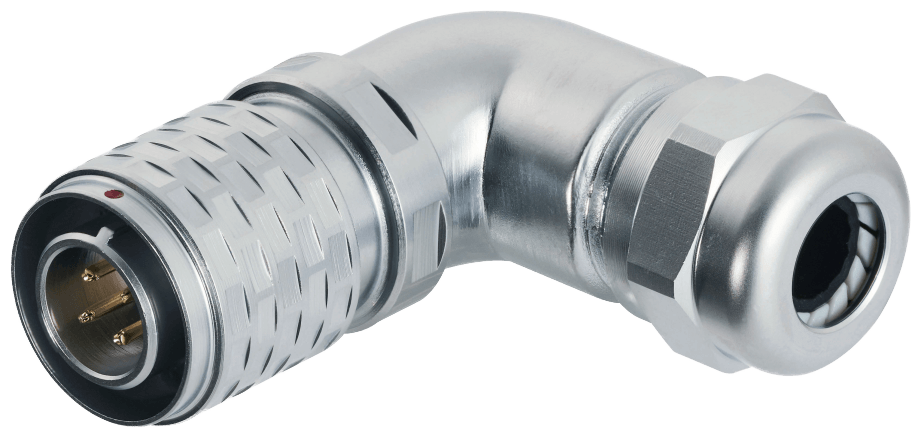

Angled Plug Option Available
Assembly and Over-Molded Solutions Available

Applications:

The SF12 Series connectors feature an elegant appearance with a durable brass shell and chrome plating, making them widely suitable for applications in lighting, medical devices, beauty equipment, testing and measuring instruments, communication technologies, and other precision electronic fields.

Download SF12 Catalogue

SF12 Mating Diagram

Different
connector types

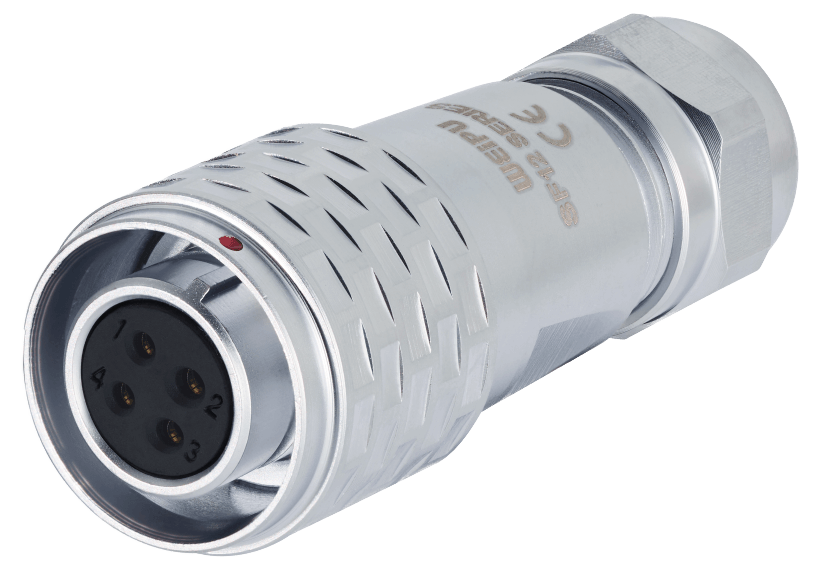

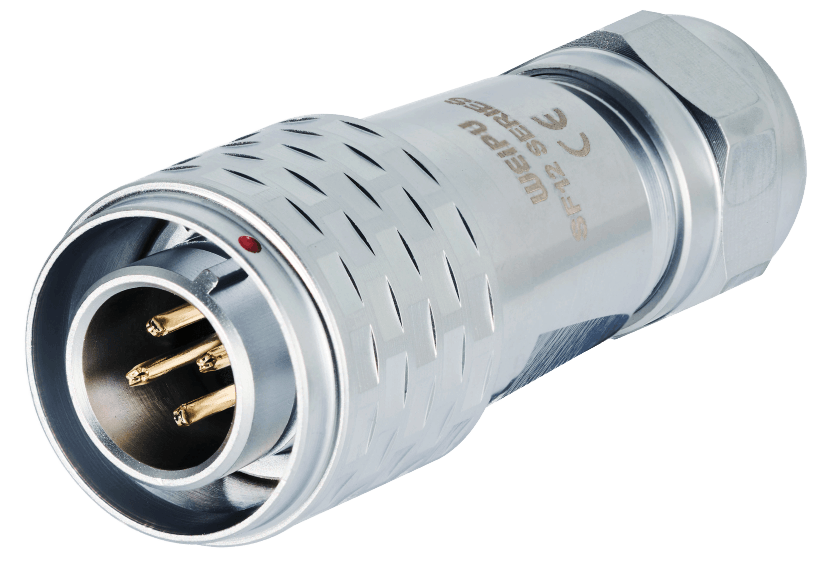

Available in both male and female.
Have options for plug, inline cable connector, panel socket.

WEIPU SF series Case- Rail Adapter Design

For the application of rail adapter, ensuring the correct and secure connection is the priority. Thus, it is important to choose a solid, high-quality connector to keep a stable connection. Meanwhile, a connector with a push-pull design can also make it easier to use when switching the mode between plugging and unplugging.
