WEIPU IP67 - METAL CONNECTOR M23 Standard connectors for signal with threaded connection

  • waterproof

    Water-proof

  • International standard_European configuration _Various configuration options

    High performance materials

  • High mating cycles

    Mis-plug resistance with colorful bands

WEIPU M23 series signal connectors are made of durable, high-performance material, which are used widely for connecting electrical drives and industrial automation applications.



* IP67 water-proof protection
* 9-19 contacts * Rated current: 8-20A

* Crimp contacts for various cross-sections
* Gold Plated Brass contacts
* Temperature ranges from –40°C to +125°C
* 360° EMC shielding available
* Cable OD ranges: 4mm – 17mm



Download M23 Catalogue

1. M23 for signal (Threaded)(waterproof)
  • 1. M23 Signal

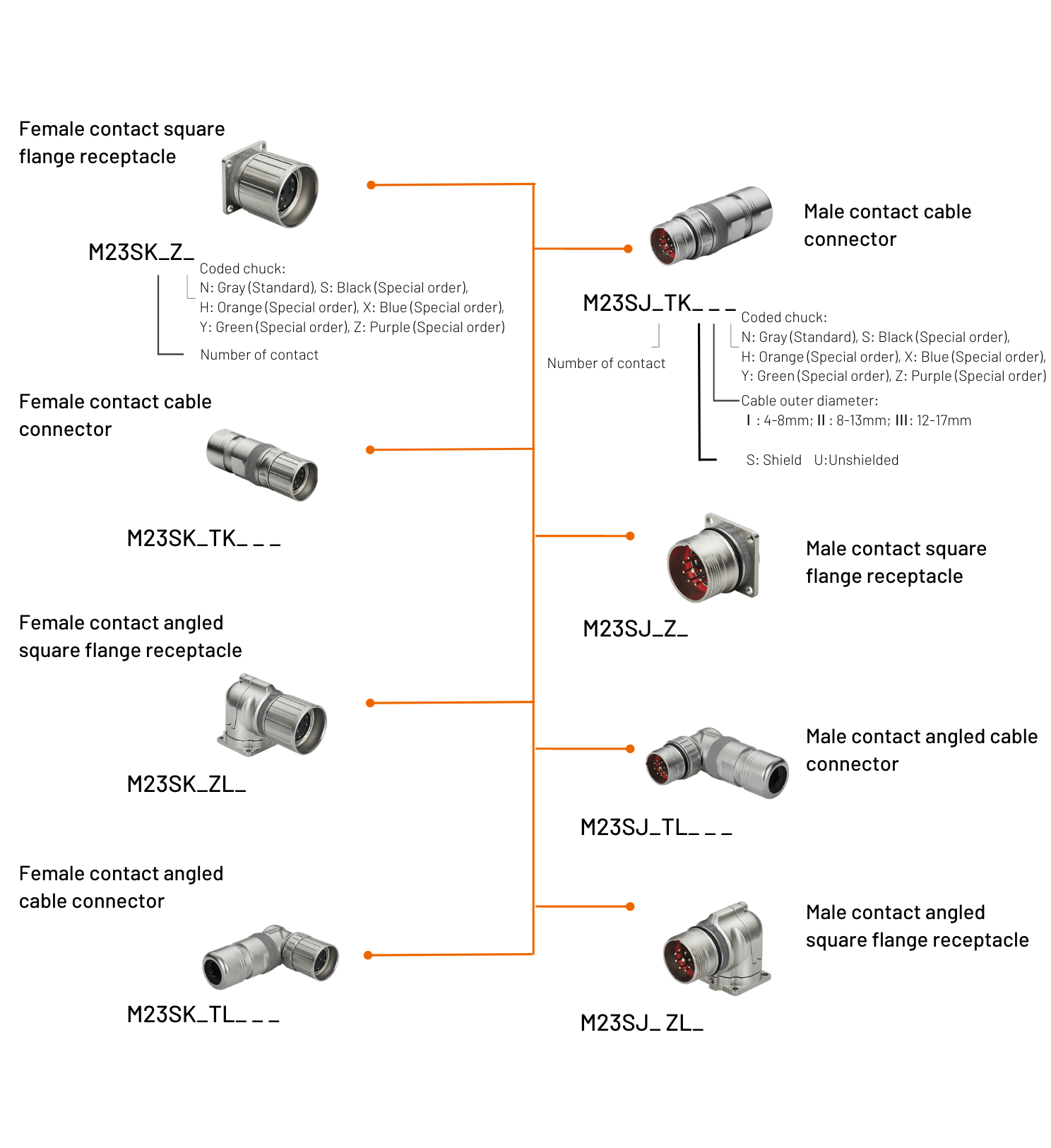

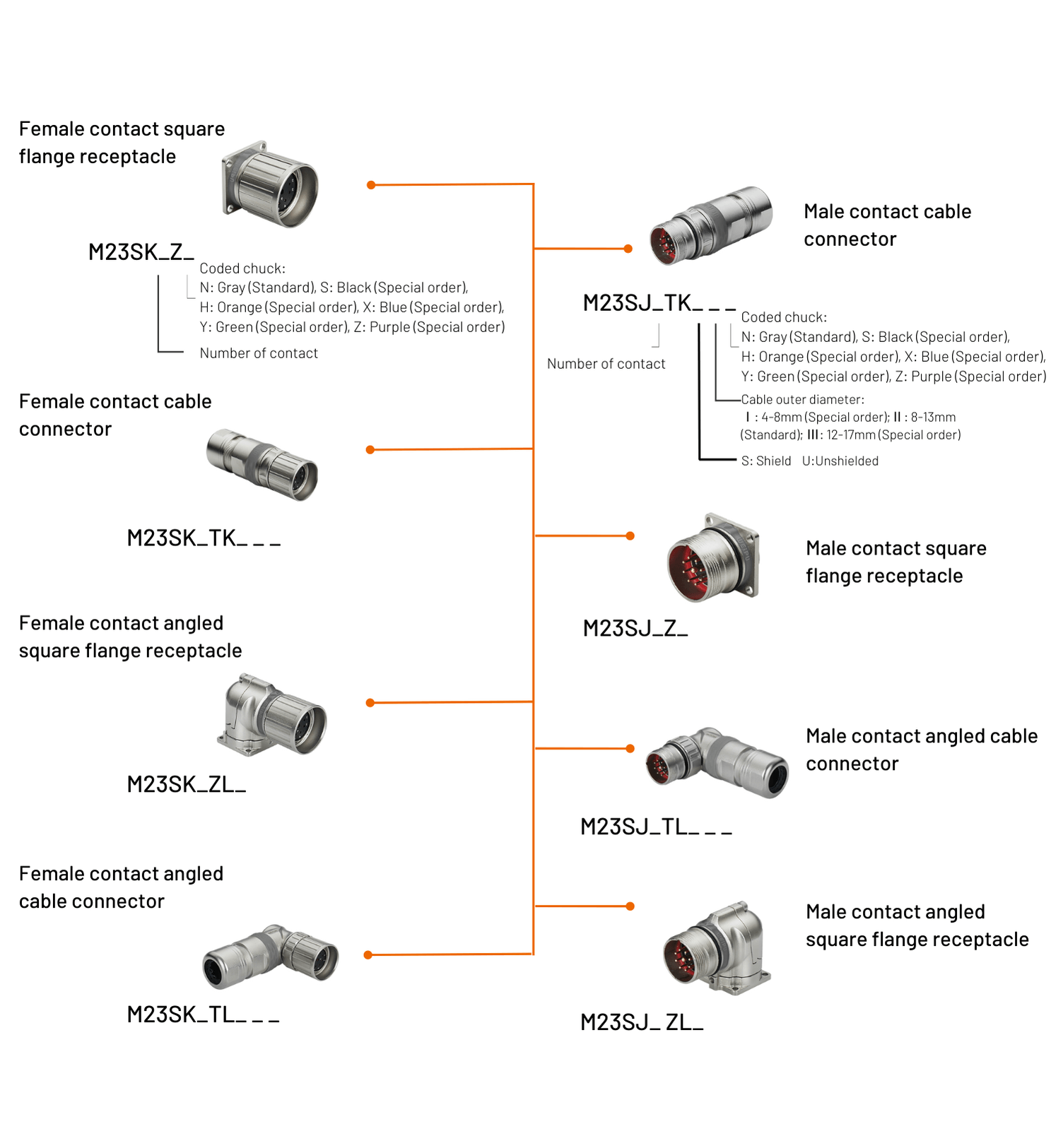

    M23 Signal Mating Diagram

Having questions for M23 SIGNAL midium?

INFO@WEIPUCONNECTOR.COM

+0086 021-56631111

Connect with WEIPU

assembly logo Cable assembly service

  • M23SJTK 2D

    M23SJTK 2D

  • M23SJTL 2D

    M23SJTL 2D

  • M23SJZ 2D

    M23SJZ 2D

  • M23SJZL 2D

    M23SJZL 2D

  • M23SKTK 2D

    M23SKTK 2D

  • M23SKTL 2D

    M23SKTL 2D

  • M23SKZ 2D

    M23SKZ 2D

  • M23SKZL 2D

    M23SKZL 2D

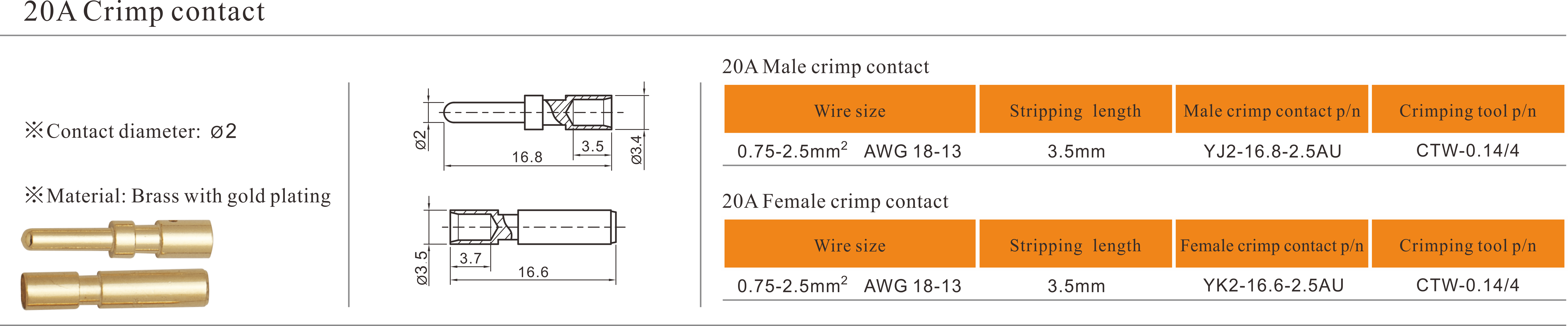

  • Crimp Spec

    • M23 signal crimp
    • M23 Signal (3)
    • M23 Signal (4)
    • M23 Signal (1)

  • Crimp Tool

    • M23 Signal (2)
